Voicemail detection

Overview

The Voicemail Detection tool allows your ElevenLabs agent to automatically identify when a call has been answered by a voicemail system rather than a human. This system tool enables agents to handle automated voicemail scenarios gracefully by either leaving a pre-configured message or ending the call immediately.

Functionality

• Automatic Detection: The LLM analyzes conversation patterns to identify voicemail systems based on automated greetings and prompts
• Configurable Response: Choose to either leave a custom voicemail message or end the call immediately when voicemail is detected
• Call Termination: After detection and optional message delivery, the call is automatically terminated
• Status Tracking: Voicemail detection events are logged and can be viewed in conversation history and batch call results

Parameters:

• reason (string, required): The reason for detecting voicemail (e.g., “automated greeting detected”, “no human response”)

Function call format:

1
{
2
  "type": "function",
3
  "function": {
4
    "name": "voicemail_detection",
5
    "arguments": "{\"reason\": \"Automated greeting detected with request to leave message\"}"
6
  }
7
}

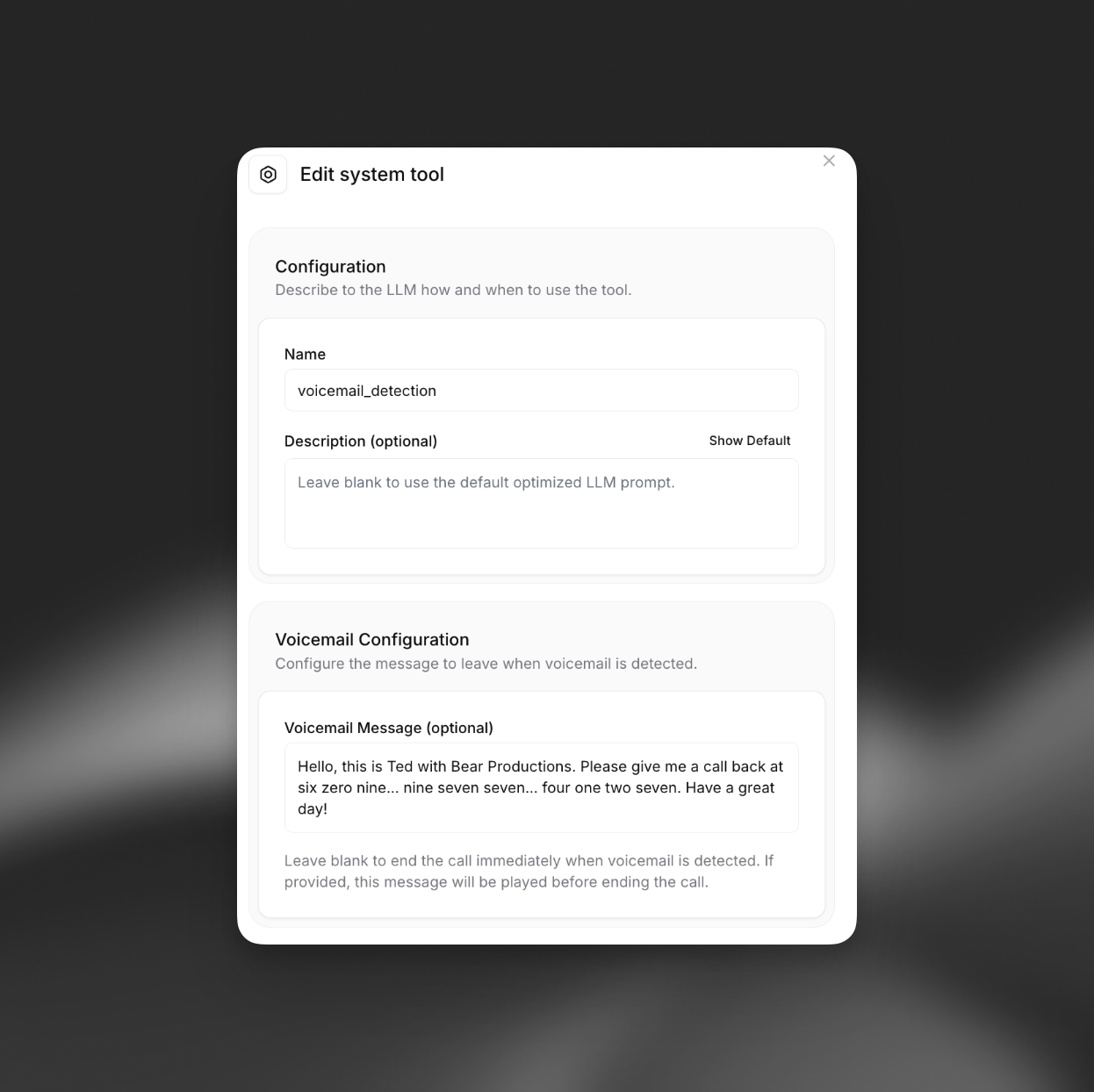

Configuration Options

The voicemail detection tool can be configured with the following options:

• Voicemail Message: You can configure an optional custom message to be played when voicemail is detected. This message supports dynamic variables, allowing you to personalize voicemail messages with runtime values such as {{user_name}} or {{appointment_time}}

API Implementation

When creating an agent via API, you can add the Voicemail Detection tool to your agent configuration. It should be defined as a system tool:

1
from elevenlabs import AgentConfig, ConversationalConfig, ElevenLabs
2
3
elevenlabs = ElevenLabs(api_key="YOUR_API_KEY")
4
5
response = elevenlabs.conversational_ai.agents.create(
6
    conversation_config=ConversationalConfig(
7
        agent=AgentConfig(
8
            prompt={
9
                "built_in_tools": {
10
                    "voicemail_detection": {
11
                        "type": "system",
12
                        "name": "voicemail_detection",
13
                        # Optional: customize when the tool should be triggered
14
                        "description": "",
15
                        "params": {
16
                            "system_tool_type": "voicemail_detection",
17
                            # Optional: message left when voicemail is detected
18
                            "voicemail_message": "Sorry I missed you. I'll call back later.",
19
                        },
20
                    }
21
                }
22
            },
23
        ),
24
    ),
25
)
