Transfer to number

Transfer calls to external phone numbers or SIP URIs based on defined conditions.

Overview

The transfer_to_number system tool allows an ElevenLabs agent to transfer the ongoing call to a specified phone number or SIP URI when certain conditions are met. This enables agents to hand off complex issues, specific requests, or situations requiring human intervention to a live operator.

This feature supports transfers via telephony numbers. When triggered, the agent can provide a message to the user while they wait and a separate message summarizing the situation for the human operator receiving the call.

The transfer_to_number system tool is only available for phone calls and is not available in the chat widget.

Transfer rules

  • A transfer rule says when the agent should transfer and how each phone provider carries out the transfer.

  • Each rule has one condition and one setup per provider.

  • Tool can be configured with multiple transfer rules.

  • During a call, the agent only sees the rules for the provider the call is running on.

  • Condition: Plain text supporting dynamic variables, that describes when to use this transfer method, e.g. “Caller asks about billing”

  • Provider configuration is a list with at most one entry per provider. If a rule has no entry for a provider, it doesn’t exist on that provider’s calls.

Transfer types

  • Conference: Default behavior that calls the destination and places the caller and human operator into a conference room
  • SIP REFER: Uses the SIP REFER protocol to transfer calls directly to the destination. Works with both phone numbers and SIP URIs, but only available when using SIP protocol during the conversation and requires your SIP Trunk to allow transfer via SIP REFER

Transfer strategies

  • Cold: Transfers the call directly without the summary of the situation to the human operator receiving the call.
  • Warm: Transfers the call summarizing the situation for the human operator receiving the call.

Available transfer options per provider

SIP

  • Cold conference: (sip_cold_conference_transfer) The receiver is added to the call with no announcement
    • Supports phone numbers only
  • SIP REFER: (sip_cold_refer_transfer) The call is handed to the destination via SIP REFER with no announcement
    • Supports both phone numbers and SIP URIs
    • Custom SIP headers, static or dynamic variables
    • UUI (User-to-User Information) to carry context such as a CRM ID
    • Play ringing tone (on by default): the caller hears ringing while the transfer completes. Turn it off and they hear silence.

Twilio

  • Cold: (twilio_cold_blind_transfer) The receiver is added to the call with no announcement
    • Supports phone numbers only
    • Post-dial digits: DTMF tones sent after the call connects
  • Warm: (twilio_warm_conference_transfer) The receiver hears the agent’s summary, then gets connected
    • Supports phone numbers only
    • Post-dial digits: DTMF tones sent after the call connects

Exotel

  • Cold: (exotel_warm_transfer) The receiver is added to the call with no announcement
    • Supports phone numbers only
  • Warm: (twilio_warm_conference_transfer) The receiver hears the agent’s summary, then gets connected
    • Supports phone numbers only

Additional configuration detailed

Post-dial digits

  • DTMF tones sent after the call connects, e.g. w1W234
  • Each w is a 0.5s pause
  • Each W is a 1s pause

Custom SIP headers

Extra SIP headers sent with the transfer, so the receiving system (PBX, contact center) gets your data, e.g. X-Customer-ID: 12345.

  • Where: SIP trunk, SIP REFER only.
  • Limits:
    • Max 20 headers per transfer.
    • Name: up to 64 characters. Letters, digits and single hyphens only

System headers X-Conversation-ID and X-Caller-ID are automatically included by ElevenLabs and will override any custom headers with the same names (case-insensitive).

UUI (User-to-User Information)

Configure UUI per transfer rule with the uui object:

  • data: The payload to send, as plaintext. ElevenLabs hex-encodes it and appends ;encoding=hex. Can be static text or include dynamic variables. Maximum 256 bytes (UTF-8), enforced after dynamic variables are substituted — for plain ASCII that is 256 characters, fewer for multi-byte characters.
  • protocol_discriminator: A single hex octet, for example 04. Include it for platforms that strip the first octet of the payload; omit it for platforms that pass the payload through.
  • protocol_discriminator_mode: prefix (default) prepends the octet, producing 04<hex>;encoding=hex. pd_parameter adds it as a separate parameter, producing <hex>;pd=04;encoding=hex.

Talkdesk passes the value through unchanged, so omit the protocol discriminator. Genesys Cloud strips the first octet of the payload unless a discriminator is present, so include a protocol_discriminator. See Genesys UUI data formats.

The 256-byte limit applies after dynamic variables are substituted. Pass identifiers or short codes such as an account ID, not free-form text like a full call summary, which exceeds the limit and is dropped from the transfer.

To receive UUI on inbound SIP calls, no configuration is required. When an incoming INVITE contains a User-to-User header, its value is exposed to the agent as the {{sip_uui_raw}} and {{sip_uui_data}} dynamic variables. See the SIP reference.

Enabling human transfer

1

Add the transfer tool

Enable human transfer by selecting the transfer_to_number system tool in your agent’s configuration within the Agent tab. Choose “Transfer to Human” when adding a tool.

2

Configure tool description (optional)

You can provide a custom description to guide the LLM on when to trigger a transfer. If left blank, a default description listing the transfer rules for the current call’s telephony provider is used.

3

(Legacy configurations only) Switch to per-provider transfer rules

Skip this step unless the tool still uses legacy transfers. In Human Transfer Rules, select Per-provider. Per-provider rules let you configure how each transfer runs on every telephony provider your agent uses (Twilio, SIP trunk, Exotel), and they get all new transfer options.

Your legacy transfers are converted into equivalent per-provider rules when you switch. Nothing changes in how existing calls behave until you edit the rules.

A tool uses either legacy transfers or per-provider rules, never both. The legacy setup applies one transfer type across every provider and won’t get new providers or transfer options.

4

Add a rule and its condition

Click Add Rule and fill in the Condition: a natural language description of when the agent should use this transfer (for example, “User explicitly requests to speak to a human” or “User needs to update sensitive account information”). The condition can include dynamic variables.

The LLM uses these conditions, along with the tool description, to decide when and where to transfer. When the agent picks a destination that doesn’t exist and only one is configured, that one is used; with several, the transfer is rejected and the agent is told the valid options.

5

Add a configuration for each telephony provider

Under Provider configuration, add one entry for every telephony provider the agent can take calls on. A new rule starts with the providers of the phone numbers assigned to the agent. Click + to add more.

Each provider can be configured once per rule.

Then set the destination:

  • Destination type: Phone Number or SIP URI. Only SIP REFER can transfer to a SIP URI. Every other transfer type takes a phone number.
  • Phone Number / SIP URI: the target in the appropriate format, typed directly or as a dynamic variable (for example {{phone_number}}):

A rule only exists on calls whose provider it has a configuration for. If a call runs on a SIP trunk number and the rule has only a Twilio configuration, the agent can’t offer that transfer on the call.

SIP REFER transfers require SIP protocol during the conversation and your SIP Trunk must allow transfer via SIP REFER.

Two rules can’t point to the same destination on the same provider, because the agent couldn’t tell them apart. You can always change the condition to include both cases.

API Implementation

You can configure the transfer_to_number system tool when creating or updating an agent via the API (Create agent, Update agent). The tool allows specifying messages for both the client (user being transferred) and the agent (human operator receiving the call).

from elevenlabs import AgentConfig, ConversationalConfig, ElevenLabs
elevenlabs = ElevenLabs(api_key="YOUR_API_KEY")
billing_destination = {"type": "phone", "destination": "+15551234567"}
human_destination = {"type": "phone", "destination": "+15559876543"}
# Each rule lists one config per telephony provider. A call only sees the rules
# that have a config for its provider (twilio, sip_trunk or exotel).
transfer_rules = [
{
"condition": "When the user asks for billing support.",
"provider_configs": [
{
"type": "twilio",
"config": {
"type": "twilio_warm_conference_transfer",
"transfer_destination": billing_destination,
# Wait 1s, then dial extension 1234 (Twilio only)
"post_dial_digits": {"type": "static", "value": "ww1234"},
},
},
{
"type": "sip_trunk",
"config": {
"type": "sip_cold_conference_transfer",
"transfer_destination": billing_destination,
},
},
{
"type": "exotel",
"config": {
"type": "exotel_warm_transfer",
"transfer_destination": billing_destination,
},
},
],
},
{
"condition": "When the user asks to speak to a human.",
"provider_configs": [
{
"type": "twilio",
"config": {
# Preserves caller ID, no warm transfer message
"type": "twilio_cold_blind_transfer",
"transfer_destination": human_destination,
},
},
{
"type": "exotel",
"config": {
"type": "exotel_cold_blind_transfer",
"transfer_destination": human_destination,
},
},
],
},
{
"condition": "When the user requests to file a formal complaint.",
"provider_configs": [
{
"type": "sip_trunk",
"config": {
"type": "sip_cold_refer_transfer",
"transfer_destination": {"type": "sip_uri", "destination": "sip:support@example.com"},
"custom_sip_headers": [
{"type": "static", "key": "X-Department", "value": "complaints"},
{"type": "static", "key": "X-Priority", "value": "high"},
# "dynamic" takes the dynamic variable's name, without {{ }}
{"type": "dynamic", "key": "X-Customer-ID", "value": "customer_id"},
],
"uui": {
"data": "account_id={{customer_id}}",
"protocol_discriminator": "04", # Genesys Cloud; omit for Talkdesk
"protocol_discriminator_mode": "prefix", # or "pd_parameter"
},
},
},
],
},
]
response = elevenlabs.conversational_ai.agents.create(
conversation_config=ConversationalConfig(
agent=AgentConfig(
first_message="Hi, how can I help you today?",
prompt={
"prompt": "You are a helpful assistant.",
"built_in_tools": {
"transfer_to_number": {
"type": "system",
"name": "transfer_to_number",
"description": "Transfer the user to a human operator based on their request.",
"params": {
"system_tool_type": "transfer_to_number",
# Still required, and must be empty when transfer_rules is set
"transfers": [],
"transfer_rules": transfer_rules,
},
}
},
},
),
),
)

API Docs Reference

Legacy setup

Transfer Types

The system supports three types of transfers:

  • Conference Transfer: Default behavior that calls the destination and adds the participant to a conference room, then removes the AI agent so only the caller and transferred participant remain. When using the native Twilio integration, supports a warm transfer message (agent_message) read to the human operator.
  • Blind Transfer: Transfers the call directly to the destination without a warm transfer message to the human operator. Preserves the original caller ID. Only available when the agent’s phone number is imported via the native Twilio integration.
  • SIP REFER Transfer: Uses the SIP REFER protocol to transfer calls directly to the destination. Works with both phone numbers and SIP URIs, but only available when using SIP protocol during the conversation and requires your SIP Trunk to allow transfer via SIP REFER. Does not support warm transfer messages.

Warm transfer messages (agent_message) are only available when the agent’s phone number is imported via the native Twilio integration. SIP-based transfers do not support warm transfer messages.

Blind transfers are only available when the agent’s phone number is imported via the native Twilio integration and must currently be configured via the JSON editor in the UI. Select “Edit as JSON” on the transfer tool configuration and set "transfer_type": "blind" for the desired transfer rule.

Purpose: Seamlessly hand off conversations to human operators when AI assistance is insufficient.

Trigger conditions: The LLM should call this tool when:

  • Complex issues requiring human judgment
  • User explicitly requests human assistance
  • AI reaches limits of capability for the specific request
  • Escalation protocols are triggered

Parameters:

  • reason (string, optional): The reason for the transfer
  • transfer_number (string, required): The phone number to transfer to (must match configured numbers)
  • client_message (string, required): Message read to the client while waiting for transfer
  • agent_message (string, required): Message for the human operator receiving the call

Function call format:

{
"type": "function",
"function": {
"name": "transfer_to_number",
"arguments": "{\"reason\": \"Complex billing issue\", \"transfer_number\": \"+15551234567\", \"client_message\": \"I'm transferring you to a billing specialist who can help with your account.\", \"agent_message\": \"Customer has a complex billing dispute about order #12345 from last month.\"}"
}
}

Implementation: Configure transfer phone numbers and conditions. Define messages for both customer and receiving human operator. Works with both Twilio and SIP trunking.

Numbers that can be transferred to

Human transfer supports transferring to external phone numbers using both SIP trunking and Twilio phone numbers.

Enabling human transfer

Human transfer is configured using the transfer_to_number system tool.

1

Add the transfer tool

Enable human transfer by selecting the transfer_to_number system tool in your agent’s configuration within the Agent tab. Choose “Transfer to Human” when adding a tool.

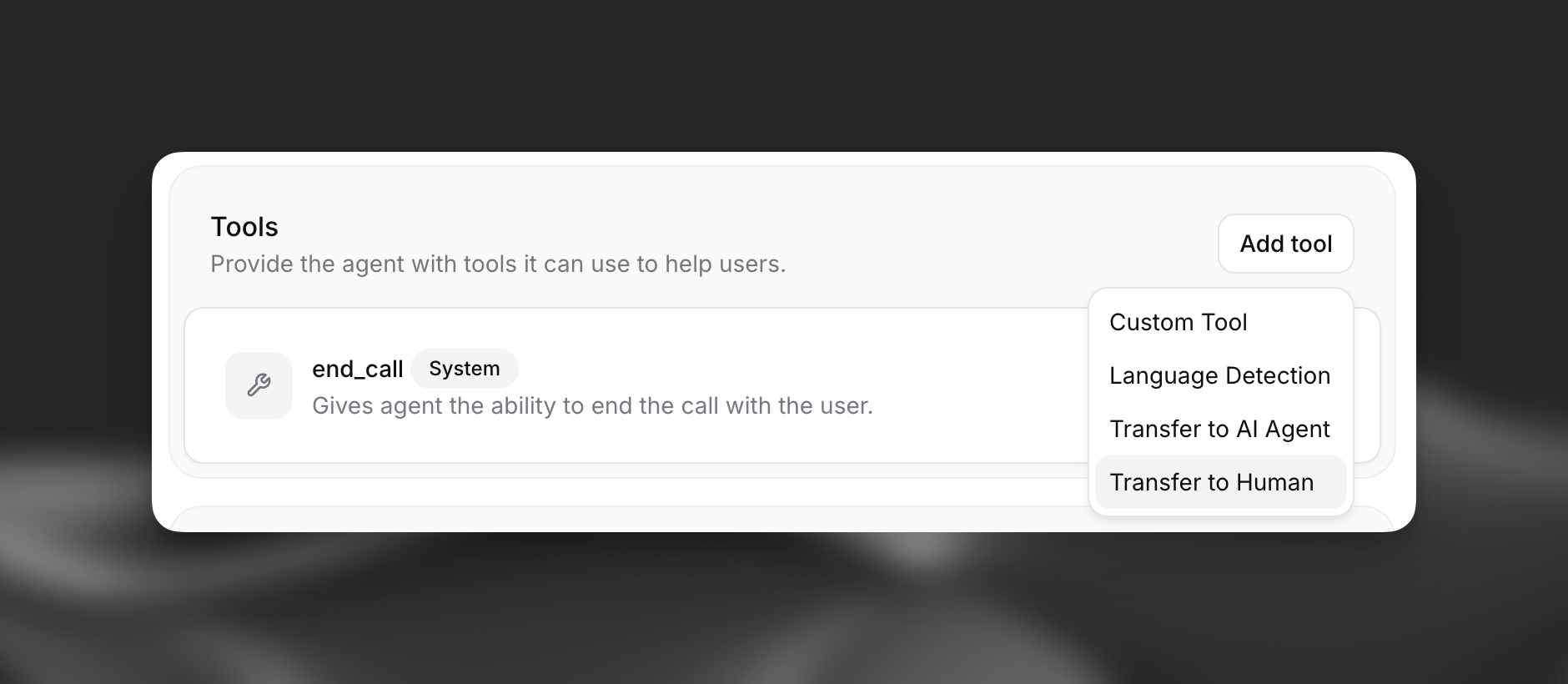

Add Human Transfer Tool
Select 'Transfer to Human' tool
2

Configure tool description (optional)

You can provide a custom description to guide the LLM on when to trigger a transfer. If left blank, a default description encompassing the defined transfer rules will be used.

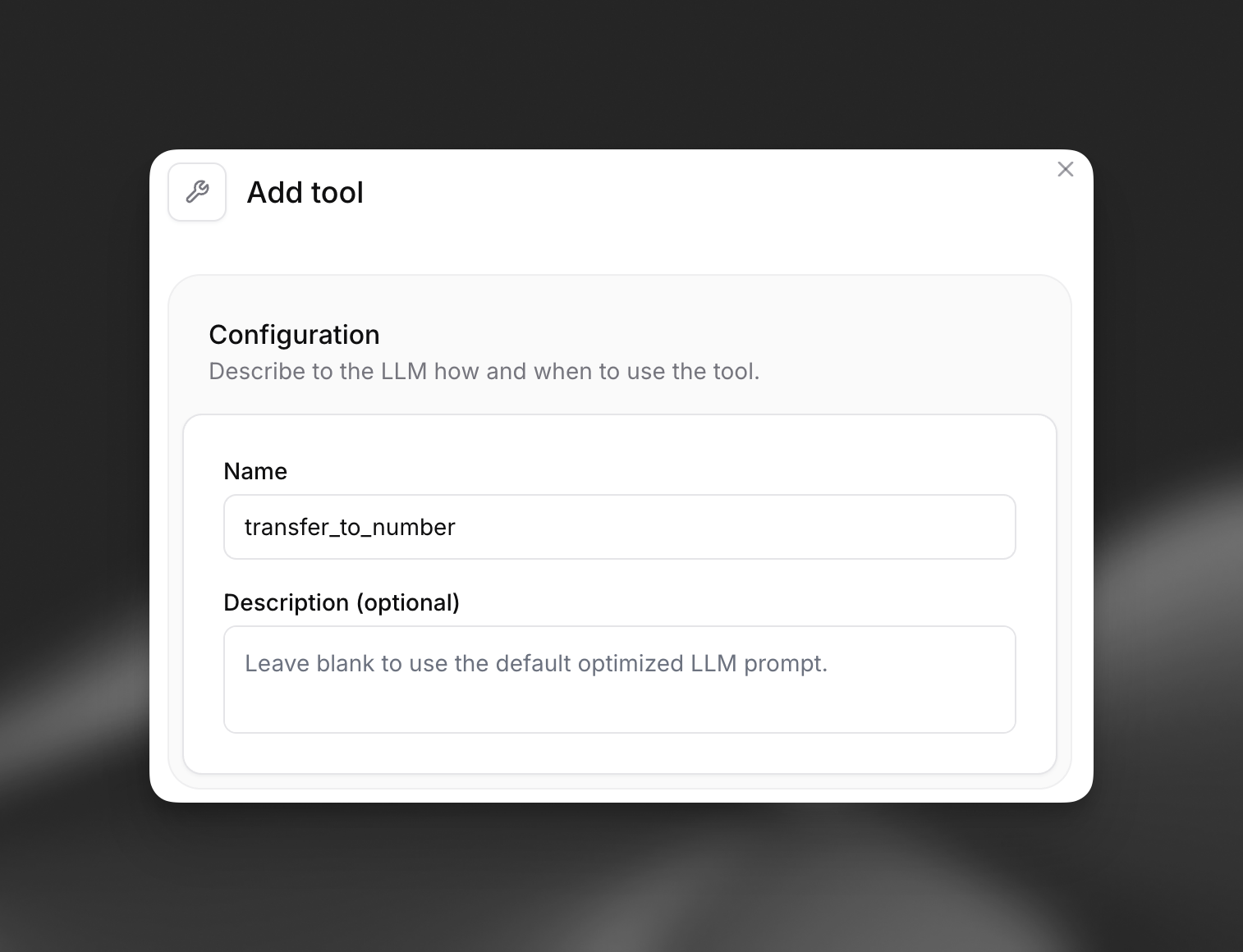

Human Transfer Tool Description
Configure transfer tool description
3

Define transfer rules

Configure the specific rules for transferring to phone numbers or SIP URIs. For each rule, specify:

  • Transfer Type: Choose between Conference (default), Blind, or SIP REFER transfer methods
  • Number Type: Select Phone for regular phone numbers or SIP URI for SIP addresses
  • Phone Number/SIP URI: The target destination in the appropriate format:
  • Condition: A natural language description of the circumstances under which the transfer should occur (e.g., “User explicitly requests to speak to a human”, “User needs to update sensitive account information”).

The LLM will use these conditions, along with the tool description, to decide when and to which destination to transfer.

SIP REFER transfers require SIP protocol during the conversation and your SIP Trunk must allow transfer via SIP REFER. Only SIP REFER supports transferring to a SIP URI.

Blind transfers are only available when the agent’s phone number is imported via the native Twilio integration and must be configured via the JSON editor. The original caller ID is preserved, but no warm transfer message is sent to the human operator.

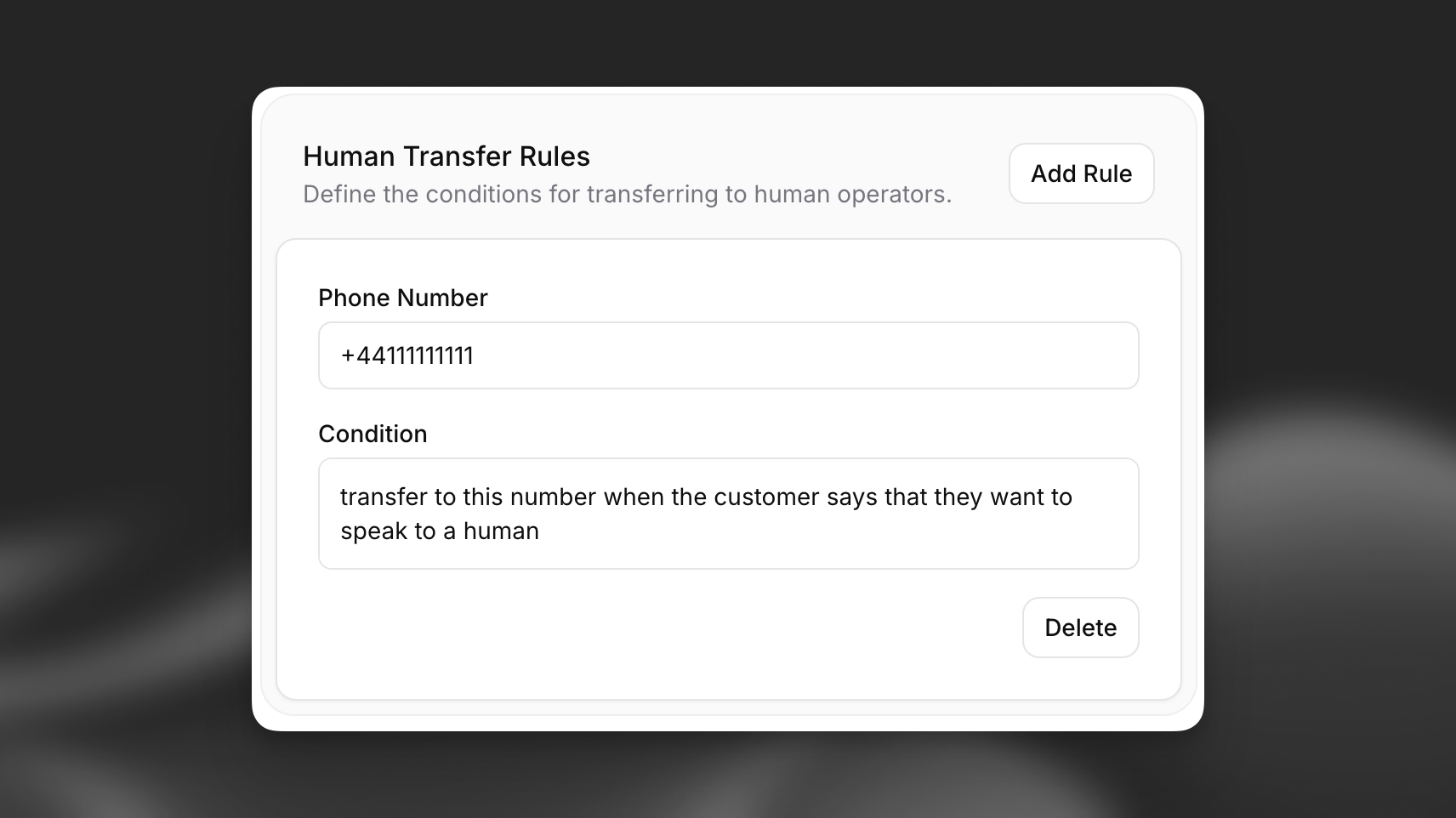

Human Transfer Rules Configuration
Define transfer rules with phone number and condition

Ensure destinations are correctly formatted:

  • Phone numbers: E.164 format and associated with a properly configured account
  • SIP URIs: Valid SIP format (sip:user@domain or sips:user@domain)
4

Configure custom SIP REFER headers (optional)

When using SIP REFER transfers, you can include custom SIP headers to pass additional information to the receiving system.

For each custom header, specify:

  • Header Name: The SIP header name (e.g., X-Customer-ID, X-Priority)
  • Header Value: The header value, which can be static text or include dynamic variables

Custom SIP REFER headers are only included with SIP REFER transfers. Conference transfers do not support custom headers.

System headers X-Conversation-ID and X-Caller-ID are automatically included by ElevenLabs and will override any custom headers with the same names (case-insensitive).

5

Configure User-to-User Information (UUI) (optional)

SIP REFER transfers can carry User-to-User Information (UUI), a small payload delivered to the receiving platform (for example Talkdesk or Genesys Cloud) in the User-to-User parameter of the Refer-To header. UUI is only sent on SIP REFER transfers to a SIP URI destination; phone-number (tel:) destinations do not carry it.

Configure UUI per transfer rule with the uui object:

  • data: The payload to send, as plaintext. ElevenLabs hex-encodes it and appends ;encoding=hex. Can be static text or include dynamic variables. Maximum 256 bytes (UTF-8), enforced after dynamic variables are substituted — for plain ASCII that is 256 characters, fewer for multi-byte characters.
  • protocol_discriminator: A single hex octet, for example 04. Include it for platforms that strip the first octet of the payload; omit it for platforms that pass the payload through.
  • protocol_discriminator_mode: prefix (default) prepends the octet, producing 04<hex>;encoding=hex. pd_parameter adds it as a separate parameter, producing <hex>;pd=04;encoding=hex.

Talkdesk passes the value through unchanged, so omit the protocol discriminator. Genesys Cloud strips the first octet of the payload unless a discriminator is present, so include a protocol_discriminator. See Genesys UUI data formats.

The 256-byte limit applies after dynamic variables are substituted. Pass identifiers or short codes such as an account ID, not free-form text like a full call summary, which exceeds the limit and is dropped from the transfer.

To receive UUI on inbound SIP calls, no configuration is required. When an incoming INVITE contains a User-to-User header, its value is exposed to the agent as the {{sip_uui_raw}} and {{sip_uui_data}} dynamic variables. See the SIP reference.

6

Configure post-dial digits (optional)

Post-dial digits are DTMF tones that are relayed after the phone connects to the transfer destination. This is useful for entering extensions or navigating IVR (Interactive Voice Response) menus automatically.

For each transfer rule, you can specify a post_dial_digits string containing:

  • Digits (0-9): Standard DTMF tones
  • w: 0.5 second delay
  • W: 1 second delay
  • * and #: Special DTMF tones

For example, ww1234 waits 1 second after the call connects, then dials extension 1234.

Post-dial digits are only available when the agent’s phone number (the number initiating the transfer) is imported via the native Twilio integration. The destination number can be any phone number.

Post-dial digits are supported for conference and blind transfer types only. SIP REFER transfers do not support post-dial digits.

API Implementation

You can configure the transfer_to_number system tool when creating or updating an agent via the API (Create agent, Update agent). The tool allows specifying messages for both the client (user being transferred) and the agent (human operator receiving the call).

from elevenlabs import AgentConfig, ConversationalConfig, ElevenLabs
elevenlabs = ElevenLabs(api_key="YOUR_API_KEY")
# Define transfer rules
transfer_rules = [
{
"transfer_destination": {"type": "phone", "phone_number": "+15551234567"},
"condition": "When the user asks for billing support.",
"transfer_type": "conference",
# Wait 1s, then dial extension 1234 (native Twilio only)
"post_dial_digits": {"type": "static", "value": "ww1234"},
},
{
"transfer_destination": {"type": "phone", "phone_number": "+15559876543"},
"condition": "When the user asks to speak to a human.",
# Native Twilio integration only, preserves caller ID, no warm transfer message
"transfer_type": "blind",
},
{
"transfer_destination": {"type": "sip_uri", "sip_uri": "sip:support@example.com"},
"condition": "When the user requests to file a formal complaint.",
"transfer_type": "sip_refer",
"custom_sip_headers": [
{"type": "static", "key": "X-Department", "value": "complaints"},
{"type": "static", "key": "X-Priority", "value": "high"},
# Use "dynamic" to read the value from a dynamic variable
{"type": "dynamic", "key": "X-Customer-ID", "value": "{{customer_id}}"},
],
"uui": {
"data": "account_id={{customer_id}}",
"protocol_discriminator": "04", # Genesys Cloud; omit for Talkdesk
"protocol_discriminator_mode": "prefix", # or "pd_parameter"
},
},
]
response = elevenlabs.conversational_ai.agents.create(
conversation_config=ConversationalConfig(
agent=AgentConfig(
first_message="Hi, how can I help you today?",
prompt={
"prompt": "You are a helpful assistant.",
"built_in_tools": {
"transfer_to_number": {
"type": "system",
"name": "transfer_to_number",
# Optional custom description
"description": "Transfer the user to a human operator based on their request.",
"params": {
"system_tool_type": "transfer_to_number",
"transfers": transfer_rules,
},
}
},
},
),
),
)
# Note: When the LLM decides to call this tool, it needs to provide:
# - transfer_number: The phone number to transfer to (must match one defined in rules).
# - client_message: Message read to the user during transfer.
# - agent_message: Message read to the human operator receiving the call (native Twilio integration only, not used for blind transfers or SIP).
