Voicemail detection

Overview

The Voicemail Detection tool allows your ElevenLabs agent to automatically identify when a call has been answered by a voicemail system rather than a human. This system tool enables agents to handle automated voicemail scenarios gracefully by either leaving a pre-configured message or ending the call immediately.

Functionality

• Automatic Detection: The LLM analyzes conversation patterns to identify voicemail systems based on automated greetings and prompts
• Configurable Response: Choose to either leave a custom voicemail message or end the call immediately when voicemail is detected
• Call Termination: After detection and optional message delivery, the call is automatically terminated
• Status Tracking: Voicemail detection events are logged and can be viewed in conversation history and batch call results

Parameters:

• reason (string, required): The reason for detecting voicemail (e.g., “automated greeting detected”, “no human response”)

Function call format:

1
{
2
  "type": "function",
3
  "function": {
4
    "name": "voicemail_detection",
5
    "arguments": "{\"reason\": \"Automated greeting detected with request to leave message\"}"
6
  }
7
}

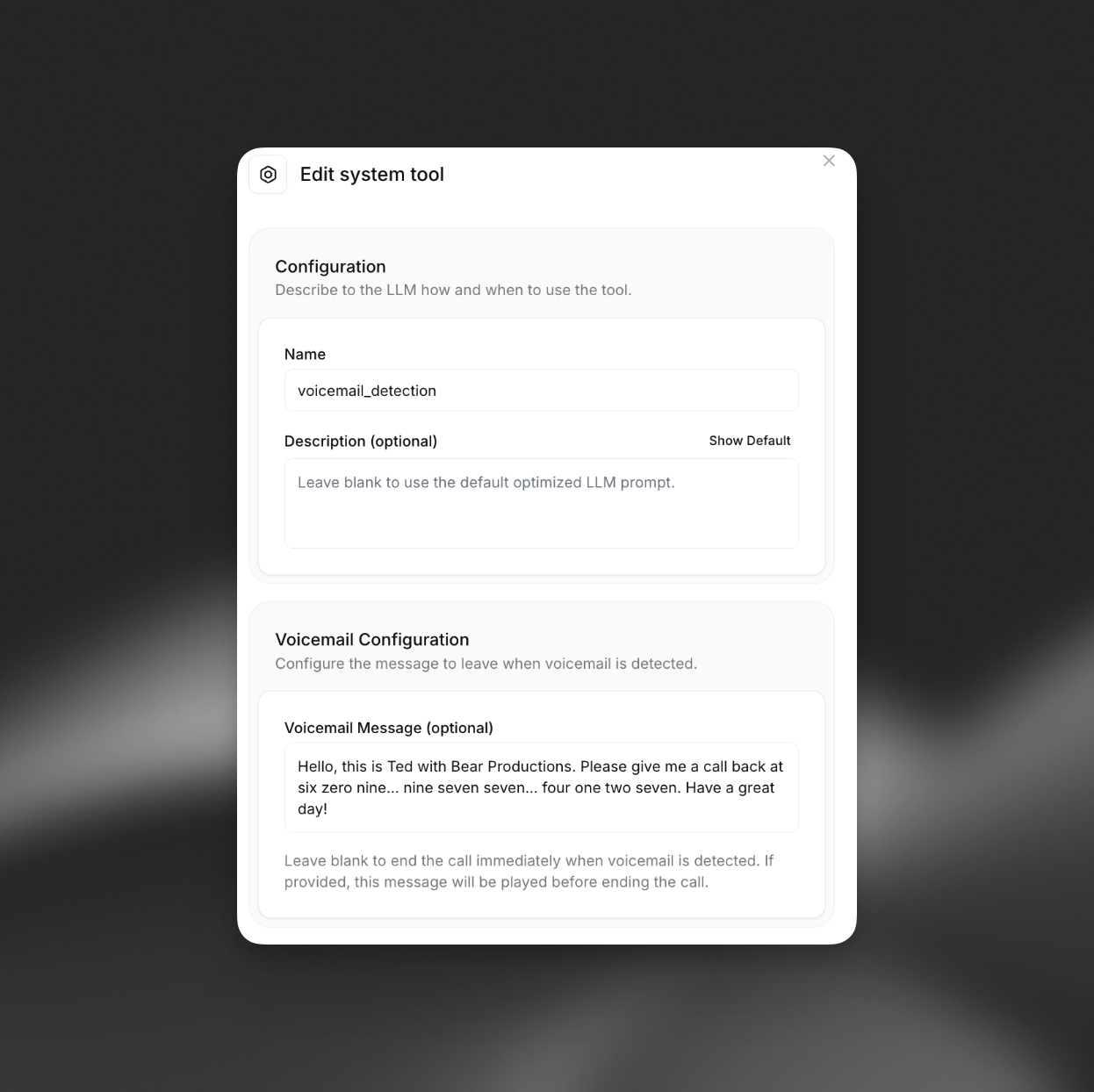

Configuration Options

The voicemail detection tool can be configured with the following options:

• Voicemail Message: You can configure an optional custom message to be played when voicemail is detected. This message supports dynamic variables, allowing you to personalize voicemail messages with runtime values such as {{user_name}} or {{appointment_time}}

API Implementation

When creating an agent via API, you can add the Voicemail Detection tool to your agent configuration. It should be defined as a system tool:

1
from elevenlabs import (
2
    ConversationalConfig,
3
    ElevenLabs,
4
    AgentConfig,
5
    PromptAgent,
6
    PromptAgentInputToolsItem_System
7
)
8
9
# Initialize the client
10
elevenlabs = ElevenLabs(api_key="YOUR_API_KEY")
11
12
# Create the voicemail detection tool
13
voicemail_detection_tool = PromptAgentInputToolsItem_System(
14
    name="voicemail_detection",
15
    description=""  # Optional: Customize when the tool should be triggered
16
)
17
18
# Create the agent configuration
19
conversation_config = ConversationalConfig(
20
    agent=AgentConfig(
21
        prompt=PromptAgent(
22
            tools=[voicemail_detection_tool]
23
        )
24
    )
25
)
26
27
# Create the agent
28
response = elevenlabs.conversational_ai.agents.create(
29
    conversation_config=conversation_config
30
)
