Overview

Voice Engine lets you easily add full voice capabilities to any chat agent, even those built outside the ElevenAgents platform. The voice engine contains everything needed to add voice conversations to your agent including turn taking, interruption detection and optimizations for the user’s language.

To use your custom agent, it must expose text based APIs that align with one of the following OpenAI-compatible request/response structures:

• Chat Completions API (/v1/chat/completions)
• Responses API (/v1/responses)

You’ll learn how to:

• Store your OpenAI API key in ElevenLabs
• Host a server that replicates OpenAI’s Chat Completions or Responses endpoint
• Direct ElevenLabs to your custom endpoint
• Pass extra parameters to your LLM as needed

Configure Voice Engine

First step is to create an empty agent to hold the Voice Engine config. Follow the quickstart guide linked above to create an empty agent.

Next, set up a compatible server endpoint using OpenAI’s style. You can implement either the Chat Completions API (/v1/chat/completions) or the Responses API (/v1/responses).

Both endpoints must return responses in SSE (Server-Sent Events) format with Content-Type: text/event-stream.

1
import json
2
import os
3
import fastapi
4
from fastapi.responses import StreamingResponse
5
from openai import AsyncOpenAI
6
import uvicorn
7
import logging
8
from dotenv import load_dotenv
9
from pydantic import BaseModel
10
from typing import List, Optional
11
12
# Load environment variables from .env file
13
load_dotenv()
14
15
# Retrieve API key from environment
16
OPENAI_API_KEY = os.getenv('OPENAI_API_KEY')
17
if not OPENAI_API_KEY:
18
    raise ValueError("OPENAI_API_KEY not found in environment variables")
19
20
app = fastapi.FastAPI()
21
oai_client = AsyncOpenAI(api_key=OPENAI_API_KEY)
22
23
class Message(BaseModel):
24
    role: str
25
    content: str
26
27
class ChatCompletionRequest(BaseModel):
28
    messages: List[Message]
29
    model: str
30
    temperature: Optional[float] = 0.7
31
    max_tokens: Optional[int] = None
32
    stream: Optional[bool] = False
33
    user_id: Optional[str] = None
34
35
@app.post("/v1/chat/completions")
36
async def create_chat_completion(request: ChatCompletionRequest) -> StreamingResponse:
37
    oai_request = request.dict(exclude_none=True)
38
    if "user_id" in oai_request:
39
        oai_request["user"] = oai_request.pop("user_id")
40
41
    chat_completion_coroutine = await oai_client.chat.completions.create(**oai_request)
42
43
    async def event_stream():
44
        try:
45
            async for chunk in chat_completion_coroutine:
46
                # Convert the ChatCompletionChunk to a dictionary before JSON serialization
47
                chunk_dict = chunk.model_dump()
48
                yield f"data: {json.dumps(chunk_dict)}\n\n"
49
            yield "data: [DONE]\n\n"
50
        except Exception as e:
51
            logging.error("An error occurred: %s", str(e))
52
            yield f"data: {json.dumps({'error': 'Internal error occurred!'})}\n\n"
53
54
    return StreamingResponse(event_stream(), media_type="text/event-stream")
55
56
if __name__ == "__main__":
57
    uvicorn.run(app, host="0.0.0.0", port=8013)

Run the code to start your Voice Engine server.

Setting up a public URL for your server

To make your server accessible, create a public URL using a tunneling tool like ngrok:

$
ngrok http --url=<Your url>.ngrok.app 8013

Configuring ElevenLabs Voice Engine

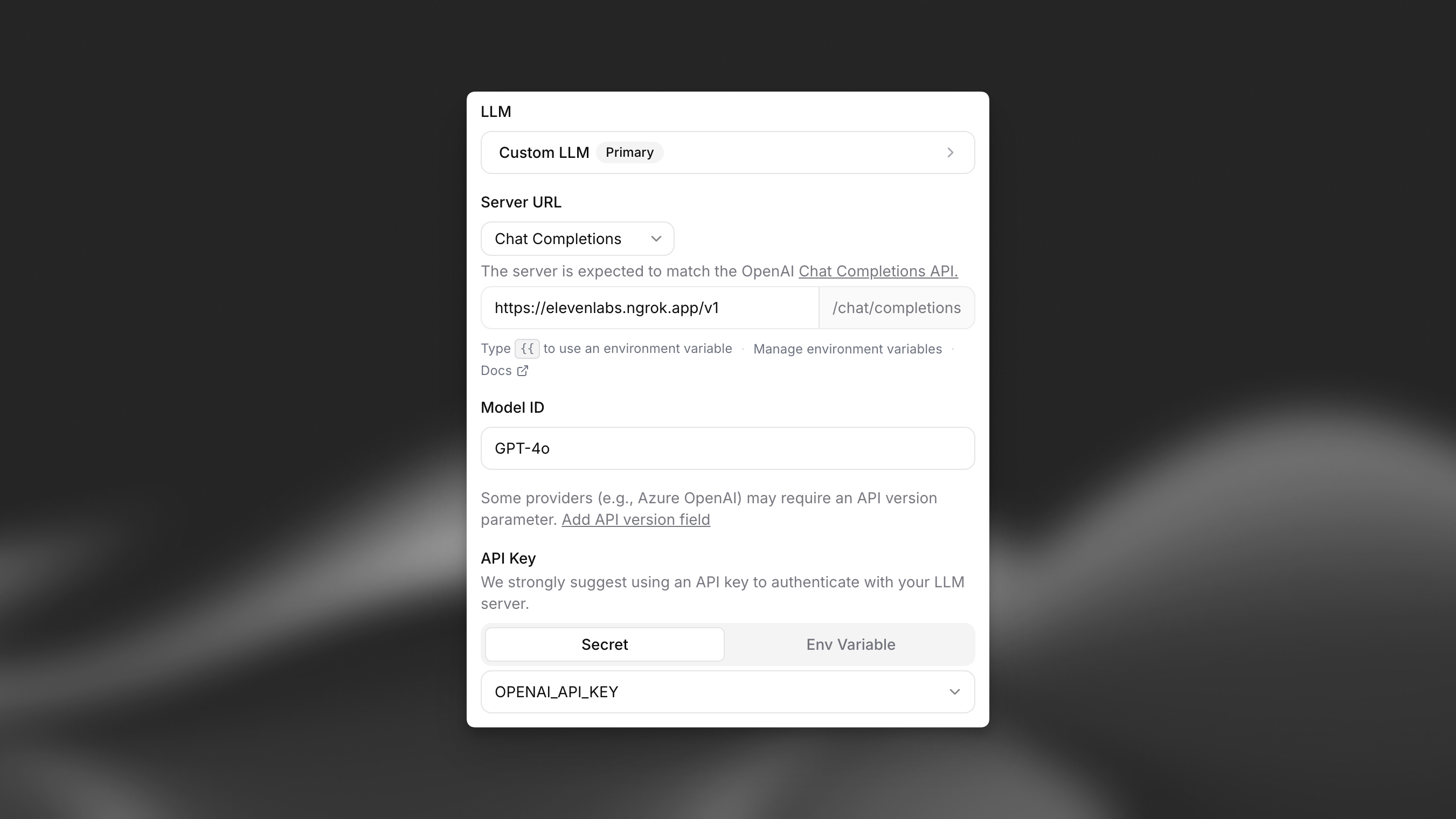

Next, update your agent settings in the ElevenLabs dashboard to point to your custom LLM server.

Direct your server URL to ngrok endpoint and set “Limit token usage” to 5000.

You can now start interacting with your agent with your own Voice Engine server.

Optimizing for slow processing LLMs

If your custom LLM has slow processing times (perhaps due to agentic reasoning or pre-processing requirements) you can improve the conversational flow by implementing buffer words in your streaming responses. This technique helps maintain natural speech prosody while your LLM generates the complete response.

Buffer words

When your LLM needs more time to process the full response, return an initial response ending with "... " (ellipsis followed by a space). This allows the Text to Speech system to maintain natural flow while keeping the conversation feeling dynamic. This creates natural pauses that flow well into subsequent content that the LLM can reason longer about. The extra space is crucial to ensure that the subsequent content is not appended to the ”…” which can lead to audio distortions.

Implementation

Here’s how to modify your custom LLM server to implement buffer words:

1
@app.post("/v1/chat/completions")
2
async def create_chat_completion(request: ChatCompletionRequest) -> StreamingResponse:
3
    oai_request = request.dict(exclude_none=True)
4
    if "user_id" in oai_request:
5
        oai_request["user"] = oai_request.pop("user_id")
6
7
    async def event_stream():
8
        try:
9
            # Send initial buffer chunk while processing
10
            initial_chunk = {
11
                "id": "chatcmpl-buffer",
12
                "object": "chat.completion.chunk",
13
                "created": 1234567890,
14
                "model": request.model,
15
                "choices": [{
16
                    "delta": {"content": "Let me think about that... "},
17
                    "index": 0,
18
                    "finish_reason": None
19
                }]
20
            }
21
            yield f"data: {json.dumps(initial_chunk)}\n\n"
22
23
            # Process the actual LLM response
24
            chat_completion_coroutine = await oai_client.chat.completions.create(**oai_request)
25
26
            async for chunk in chat_completion_coroutine:
27
                chunk_dict = chunk.model_dump()
28
                yield f"data: {json.dumps(chunk_dict)}\n\n"
29
            yield "data: [DONE]\n\n"
30
31
        except Exception as e:
32
            logging.error("An error occurred: %s", str(e))
33
            yield f"data: {json.dumps({'error': 'Internal error occurred!'})}\n\n"
34
35
    return StreamingResponse(event_stream(), media_type="text/event-stream")

System tools integration

Your custom LLM can trigger system tools to control conversation flow and state. These tools are automatically included in the tools parameter of your chat completion requests when configured in your agent.

How system tools work

1. LLM Decision: Your custom LLM decides when to call these tools based on conversation context
2. Tool Response: The LLM responds with function calls in standard OpenAI format
3. Backend Processing: ElevenLabs processes the tool calls and updates conversation state

For more information on system tools, please refer to the system tools guide.

Available system tools

1
{
2
  "type": "function",
3
  "function": {
4
    "name": "end_call",
5
    "arguments": "{\"reason\": \"Task completed successfully\", \"message\": \"Thank you for using our service. Have a great day!\"}"
6
  }
7
}

1
{
2
  "type": "function",
3
  "function": {
4
    "name": "language_detection",
5
    "arguments": "{\"reason\": \"User requested Spanish\", \"language\": \"es\"}"
6
  }
7
}

1
{
2
  "type": "function",
3
  "function": {
4
    "name": "skip_turn",
5
    "arguments": "{\"reason\": \"User requested time to think\"}"
6
  }
7
}

Example Request with System Tools

When system tools are configured, your custom LLM will receive requests that include the tools in the standard OpenAI format:

1
{
2
  "messages": [
3
    {
4
      "role": "system",
5
      "content": "You are a helpful assistant. You have access to system tools for managing conversations."
6
    },
7
    {
8
      "role": "user",
9
      "content": "I think we're done here, thanks for your help!"
10
    }
11
  ],
12
  "model": "your-custom-model",
13
  "temperature": 0.7,
14
  "max_tokens": 1000,
15
  "stream": true,
16
  "tools": [
17
    {
18
      "type": "function",
19
      "function": {
20
        "name": "end_call",
21
        "description": "Call this function to end the current conversation when the main task has been completed...",
22
        "parameters": {
23
          "type": "object",
24
          "properties": {
25
            "reason": {
26
              "type": "string",
27
              "description": "The reason for the tool call."
28
            },
29
            "message": {
30
              "type": "string",
31
              "description": "A farewell message to send to the user along right before ending the call."
32
            }
33
          },
34
          "required": ["reason"]
35
        }
36
      }
37
    },
38
    {
39
      "type": "function",
40
      "function": {
41
        "name": "language_detection",
42
        "description": "Change the conversation language when the user expresses a language preference explicitly...",
43
        "parameters": {
44
          "type": "object",
45
          "properties": {
46
            "reason": {
47
              "type": "string",
48
              "description": "The reason for the tool call."
49
            },
50
            "language": {
51
              "type": "string",
52
              "description": "The language to switch to. Must be one of language codes in tool description."
53
            }
54
          },
55
          "required": ["reason", "language"]
56
        }
57
      }
58
    },
59
    {
60
      "type": "function",
61
      "function": {
62
        "name": "skip_turn",
63
        "description": "Skip a turn when the user explicitly indicates they need a moment to think...",
64
        "parameters": {
65
          "type": "object",
66
          "properties": {
67
            "reason": {
68
              "type": "string",
69
              "description": "Optional free-form reason explaining why the pause is needed."
70
            }
71
          },
72
          "required": []
73
        }
74
      }
75
    }
76
  ]
77
}

Additional Features

1
from elevenlabs.conversational_ai.conversation import Conversation, ConversationConfig
2
3
extra_body_for_convai = {
4
    "UUID": "123e4567-e89b-12d3-a456-426614174000",
5
    "parameter-1": "value-1",
6
    "parameter-2": "value-2",
7
}
8
9
config = ConversationConfig(
10
    extra_body=extra_body_for_convai,
11
)

1
import json
2
import os
3
import fastapi
4
from fastapi.responses import StreamingResponse
5
from fastapi import Request
6
from openai import AsyncOpenAI
7
import uvicorn
8
import logging
9
from dotenv import load_dotenv
10
from pydantic import BaseModel
11
from typing import List, Optional
12
13
# Load environment variables from .env file
14
load_dotenv()
15
16
# Retrieve API key from environment
17
OPENAI_API_KEY = os.getenv('OPENAI_API_KEY')
18
if not OPENAI_API_KEY:
19
    raise ValueError("OPENAI_API_KEY not found in environment variables")
20
21
app = fastapi.FastAPI()
22
oai_client = AsyncOpenAI(api_key=OPENAI_API_KEY)
23
24
class Message(BaseModel):
25
    role: str
26
    content: str
27
28
class ChatCompletionRequest(BaseModel):
29
    messages: List[Message]
30
    model: str
31
    temperature: Optional[float] = 0.7
32
    max_tokens: Optional[int] = None
33
    stream: Optional[bool] = False
34
    user_id: Optional[str] = None
35
    elevenlabs_extra_body: Optional[dict] = None
36
37
@app.post("/v1/chat/completions")
38
async def create_chat_completion(request: ChatCompletionRequest) -> StreamingResponse:
39
    oai_request = request.dict(exclude_none=True)
40
    print(oai_request)
41
    if "user_id" in oai_request:
42
        oai_request["user"] = oai_request.pop("user_id")
43
44
    if "elevenlabs_extra_body" in oai_request:
45
        oai_request.pop("elevenlabs_extra_body")
46
47
    chat_completion_coroutine = await oai_client.chat.completions.create(**oai_request)
48
49
    async def event_stream():
50
        try:
51
            async for chunk in chat_completion_coroutine:
52
                chunk_dict = chunk.model_dump()
53
                yield f"data: {json.dumps(chunk_dict)}\n\n"
54
            yield "data: [DONE]\n\n"
55
        except Exception as e:
56
            logging.error("An error occurred: %s", str(e))
57
            yield f"data: {json.dumps({'error': 'Internal error occurred!'})}\n\n"
58
59
    return StreamingResponse(event_stream(), media_type="text/event-stream")
60
61
if __name__ == "__main__":
62
    uvicorn.run(app, host="0.0.0.0", port=8013)

1
{
2
  "messages": [
3
    {
4
      "role": "system",
5
      "content": "\n  <Redacted>"
6
    },
7
    {
8
      "role": "assistant",
9
      "content": "Hey I'm currently unavailable."
10
    },
11
    {
12
      "role": "user",
13
      "content": "Hey, who are you?"
14
    }
15
  ],
16
  "model": "gpt-4o",
17
  "temperature": 0.5,
18
  "max_tokens": 5000,
19
  "stream": true,
20
  "elevenlabs_extra_body": {
21
    "UUID": "123e4567-e89b-12d3-a456-426614174000",
22
    "parameter-1": "value-1",
23
    "parameter-2": "value-2"
24
  }
